Optical microscopes are nice for getting a pleasant, clear visuals of small objects. However they do have a backside restrict the place objects are too small for an optical microscope to resolve variations between options. Laser scanning microscopes could make out extra element by solely resolving a single level at a time to take away interference. Hobbyists and citizen scientists hardly ever have entry to laser scanning microscopes, as they begin at a number of thousand {dollars} and go as much as many tens of 1000’s of {dollars}. That’s why it’s so spectacular that Physician Volt was in a position to make his personal laser scanning microscope utilizing an previous Blu-ray laser.
You may most likely discover an previous Blu-ray drive or participant at your native thrift retailer for a couple of dollars, and even without cost in an e-waste bin. A Blu-ray drive makes use of a laser diode to mission a laser beam onto the disc, which can both mirror properly or not relying on the bit at that location. A sensor detects the reflection and the system returns a one or zero primarily based on a set threshold. However the sensor itself isn’t binary — it measure the depth of the mirrored gentle. By operating that very same course of and recording every depth measurement, one can create a picture of the floor of regardless of the laser scans. The decision is a operate of the bodily motion of the laser because it scans.
Physician Volt was ready to do that affordably by using as lots of the components from the unique Blu-ray drive as doable. These components included the laser diode, the main target coil, the sensor, the body, the stepper motor that strikes the laser, and its lead screws. An ESP32 growth board controls the X and Y axes via motor drivers (one for the stepper, one for the scanning electromagnet). It additionally controls the laser diode with a voltage regulator and the main target coil with a transistor. Lastly, it displays the output from the sensor via an op-amp that will increase the sign sufficient for the ESP32’s analog enter pin.

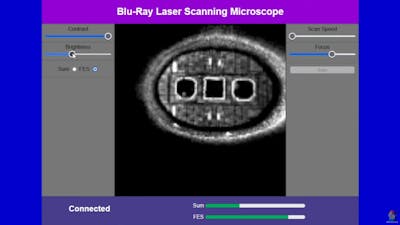

The ESP32 handles the low-level management of laser scanning, however a pc interprets the whole lot and hosts the customized interface. That interface has changes for distinction, brightness, focus, and scan pace. The latter two settings must be set earlier than scanning, however the consumer can modify the brightness and distinction after scanning to get a transparent image. The scanning outcomes present up as a picture within the interface line-by-line because the laser strikes throughout the item’s floor.
The magnification energy and constancy of this DIY microscope aren’t nearly as good as from a business laser scanning microscope, however they’re nonetheless very spectacular. After changing the unique lead screw with a mannequin that has a finer pitch, Physician Volt was in a position to get some superb outcomes that exceed these of hobbyist optical microscopes available on the market.
